Product Code: 132-00
Availability: Call for availability

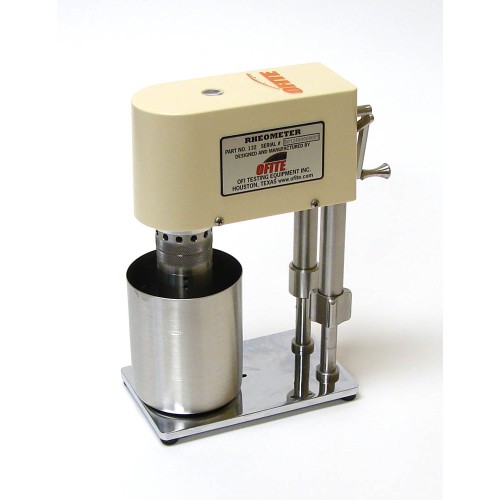

The Hand Crank Rheometer is a direct-indicating, manually operated, rotational viscometer. The instrument is powered by a hand crank, which drives the spindle through a precision gear train. The shift cam selects between fixed speeds of 300 and 600 RPM. A Knob on the hub of the shift cam determines gel strength.

Features

  • Suitable for field and lab use
  • Ultimate in portability
  • Reliability
  • Small footprint if used in laboratory

Components

  • #130-21: Cup, Stainless Steel
  • #132-56: Rotor Sleeve, R1
  • #132-57: Bearing Shield
  • #132-58: Bob, B1
  • #132-59: Bearing Retainer
  • #132-67: Torsion Spring Assembly
  • #132-68: Bearing, Shielded
  • #132-69: Bearing for Governor
  • #132-70: Bearing for Driver Shaft
  • #132-71: Bearing for Main Shaft
  • #132-75: Locking Ring, Internal
  • #132-76: Locking Ring, External
  • #135-02: Locking Ring for Bob Shaft, External

Optional

  • #132-00-SP: Spare Parts Kit
  • #132-06: Case with Foam Insert
  • #132-80: Calibration Fluid, 100 cP, 16 oz
  • #132-81: Calibration Fluid, 50 cP, 16 oz

Specifications

  • Size: 9" × 4" × 6.5" (23 × 10 × 17 cm)
  • Weight: 8 lb (3.6 kg)

Part Number

  • #132-00
