Drilling Fluids

http://schema.org/OutOfStock
Product Code: 150-80
Availability: Call for availability

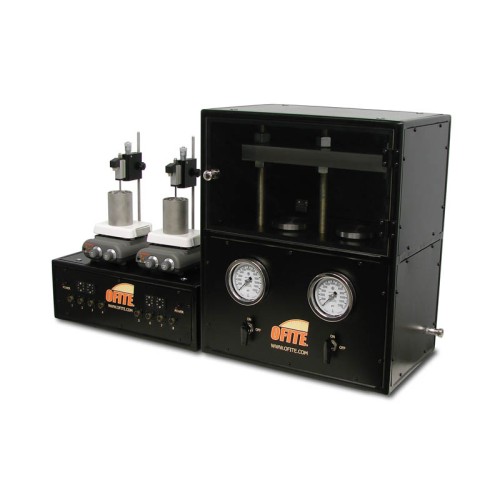

The Dynamic Linear Swell Meter is designed to simultaneously test up to four drilling fluids (expandable to eight) on a representative shale sample for extended periods of time at temperatures up to 180°F. The Linear Swell Meter is the only swell meter on the market capable of dynamically testing your fluids, so you obtain the most accurate data possible.

Features

  • Dynamic - Drilling fluid constantly circulates around the sample.
  • Efficient - Can measure up to four drilling fluids (expandable to eight) simultaneously.
  • Durable - Manufactured from 316 Stainless Steel.
  • Electronic Data - LVDT measures expansion of sample.
  • Complete - Includes dies and hydraulic press for making shale sample wafers.
  • Realistic - Fluid is in contact with the wafer from all sides.

Specifications

  • Size: 20.5” × 14.5” × 25” (52 × 37 × 64 cm)
  • Weight: 220 lb (100 kg)
  • Swell Meter and Compactor:
  • Crated Size: 27” × 21” × 47” (65 × 53 × 120 cm)
  • Crated Weight: 312 lb (142 kg)
  • Instrument Control:
  • Crated Size: 37” × 20” × 32” (94 × 51 × 81 cm)
  • Crated Weight: 235 lb (107 kg)

Software Features

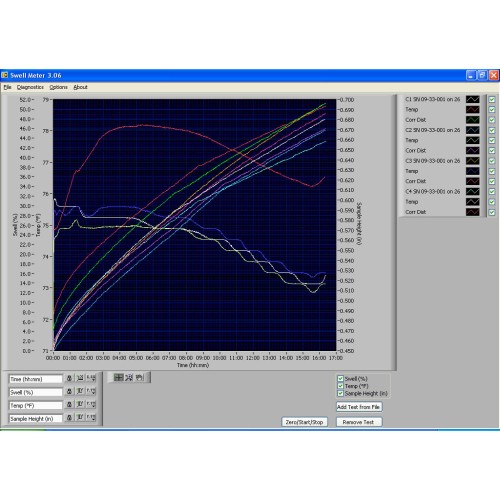

  • Computer-Controlled - Logs, analyzes, and updates data real-time so you don’t have to!

Swell Meter Components

  • #130-75-71: Monitor
  • #130-75-74: Desktop Computer
  • #130-76-03: Thermocouple
  • #130-79-06: DAQ Cable
  • #150-80-009: Weight
  • #150-80-03: Screen, Flat, 1 1/16" Diameter
  • #150-80-031: Washer (Spacer), Teflon®
  • #150-80-032: Transfer Stand
  • #150-80-033: Wafer Tube
  • #150-80-034: Main Plate
  • #150-80-035: Cup
  • #150-80-036: Cap
  • #150-80-064: LVDT
  • #150-80-067; Micrometer
  • #150-80-101: Calibration Block, Multi Point
  • #150-83: Stirring Hot Plate, 115 Volt
  • #150-84; Stirring Hot Plate, 230 Volt
  • #152-37: AC Power Cord, 115 Volt
  • #152-38: AC Power Cord, 230 Volt
  • #153-67: Syringe, Disposable, 60 cc

Compactor Components

  • #122-224: Valve
  • #150-80-072: Pump
  • #150-80-075: Hose
  • #150-80-085: Spacer for Wafer Mold, 1/2"
  • #150-80-086: Spacer for Wafer Mold, 3/4"
  • #150-80-087: Body for Wafer Mold
  • #150-80-088: Plunger for Wafer Mold
  • #150-80-089: Drop Tube for Wafer Mold
  • #150-85: Relief Valve, 2,900 PSI (20 MPa)

Optional

  • #150-81-1: Swell Meter Expansion, Single Unit, 115 Volt Only
  • #150-81-2: Swell Meter Expansion, Single Unit, 230 Volt Only

Part Numbers

  • #150-80: 115 Volt
  • #150-80-1: 230 Volt
