Product Code: 130-76-10
Availability: Call for availability

Available Options

Voltage:
115 Volt
230 Volt

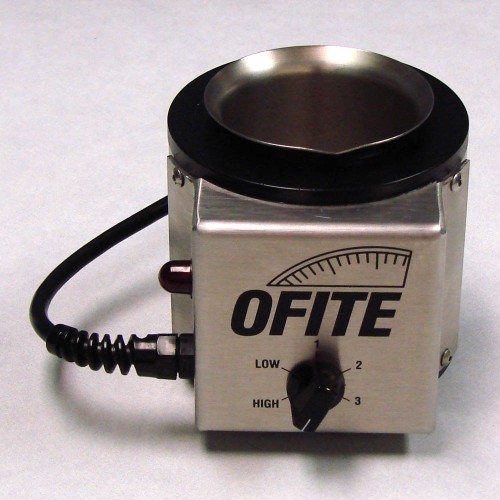

The OFITE Universal Heat Cup is designed for controlling the temperature of a fluid sample while taking readings with a rheometer or viscometer. Normal heat-up time is 15 minutes and the pilot light turns on during heating.

Features

  • Designed to work with the Model 900 Viscometer
  • Can be plugged directly into the Model 900 Viscometer, eliminating the need for a second power outlet
  • Allows the ORCADA® software to control the temperature of the fluid sample during a test
  • Can be used with other viscometers like the Model 800 Viscometer and the Hand- Crank Rheometer. (An additional power cable is sold separately)
  • Stainless steel cup is easier to clean up and promotes safety
  • Improved heater design; results in faster heating times
  • May be controlled with a computer or manually
  • Includes removable stainless steel cup (#130-76-10-10)

Specifications

  • Designed to work with the OFITE Model 900 Viscometer
  • Allows the ORCADA® software to control the temperature of the fluid sample during a test
  • Can be used with other viscometers like the OFITE Model 800 Viscometer and the OFITE Hand- Crank Rheometer.
  • Size: 4.5" × 4.5" × 4" (11 × 11 × 10 cm)
  • Weight: 3 lb (1.36 kg)

Components

  • #130-31: Thermostat
  • #130-38-014: Resistor
  • #130-35-2: Lens for Lamp, Red
  • #130-35-3: Lamp
  • #130-76-10-10: Cup, Stainless Steel

Optional

An additional power cord is necessary when using the Universal Heat Cup without a Model 900 Viscometer.

  • #152-37: AC Power Cord, 115 Volt
  • #152-38: AC Power Cord, 230 Volt

Part Numbers

  • #130-76-10: 115 Volt
  • #130-76-10-1: 230 Volt
