Product Code: 152-97
Availability: Call for availability

Available Options

With Computer:
With Computer
Without Computer

The Calcimeter is used to determine the amount of Calcium Carbonate (CaCO3) and Magnesium Carbonate (Dolomite) in a sample of alkaline earth carbonates such as oil well cores or drilled cuttings.

Calcite buildup in drilling fluids and in water treatment processes causes scaling problems. Data from the Recording Calcimeter can help determine the proper chemical treatment.

Features

  • Comprehensive software includes calibration, test procedure,and all calculations
  • Rugged, waterproof carrying case with rollers
  • Complies with ASTM D 4373 - 84 (Reapproved 1990) Standard Test Method for Calcium Carbonate Content in Soils

Software Features

  • Built-in calibration
  • Automatically calculates percentages of CaCO3 and Dolomite in the sample

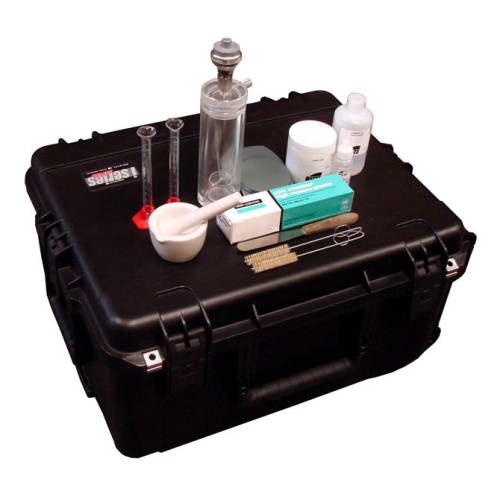

Components

  • #142-54: O-ring for Bleed-Off Screw
  • #152-95-1: Gauge with Cover, 30 PSI, 4" Diameter
  • #152-95-2: Bleed-Off Screw
  • #152-95-3: Cell Cap
  • #152-95-4: Reaction Cell
  • #152-95-5: O-ring for Cap
  • #152-95-6: Sample Cup
  • #152-96-6: Mortar, 65 mL, Porcelain
  • #152-96-7: Pestle, Porcelain
  • #153-02: Brush, Graduate, 1.5" × 10.75"
  • #153-18: Graduated Cylinder, 10 mL × .1 mL, Glass
  • #153-55: Stopcock Grease, Silicone
  • #166-03: Hand-held Balance, 0 - 320 g × .1 g
  • #275-03: Hydrochloric Acid, 10%, 8 oz UN 1789
  • #285-00-1: Calcium Carbonate, 100 g

Part Numbers

  • #152-97: Recording Calcimeter with DAQ
  • #152-97-C: Recording Calcimeter with DAQ and Laptop Computer
